MOTOR: SUTONG 250W 45nm Tork (BAFANG ÜRETİMİ)
Batarya: 10.4ah pil
Gövde: Alüminyum
Maşa: Kitlenebilir Amortisör
Vites: Shimano 7 Vites
Ruble: 7li Shimano

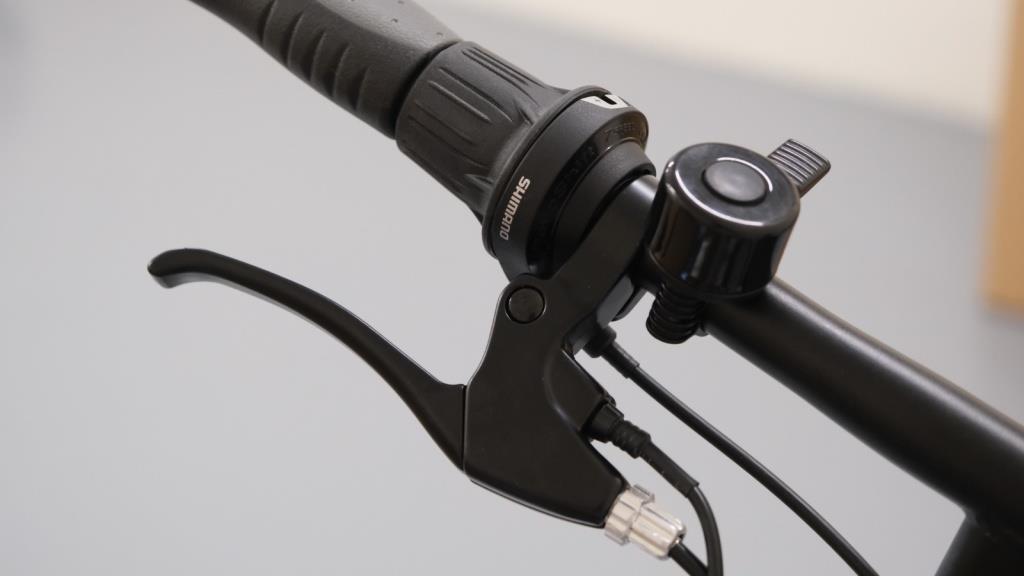

Vites Kolu: Shimano Revoshift Çevirmeli Vites kolu
Arka Aktarıcı: Shimano
Frenler: Mekanik Disk Fren
Tekerler: Kolon Jant
Lastikler: CST BFT 20×4.0
Ön Arka Pilden beslemeli aydınlatma
DETAYLI ÖZELLİKLER
| 20″ Kadro – Katlanır – Parlak Yeşil (P-0830 gloss) – Gri (YS-716 gloss) – Zuma |
| Amt. Maşa – MD-N771ST-ML/O – Siyah – Zuma – (YS728 STICKERSYS716) Gri |
| Kolon Jant – Ön – 20″*4.0″,3/8″*135mm*175mm,with nuts |
| Kolon Jant – Arka – 20″*4.0″,36V*350W,cable in the left, speed limit 25KM/H,with 250W logo – Zuma |
| Furş Takımı – ?28.6*44*30,H=22mm,1-1/8″ – Zuma |
| Gidon – ?22.2mm*1.4T*560mm – MD-T08 – Zuma |
| Gidon Boğazı – MD-X01 – Zuma |
| Elcik – Sol – L=22.2*130MM,with F17 plug – Zuma |
| Elcik – Sağ – R=22.2*92MM,with F17 plug – Zuma |
| Orta Yatak – BC1.37″*24T,170MM – KL-08AL – Zuma |
| Aynakol – 1/2*3/32″*52T*170MM -PRO-552PP-3 – Zuma |
| Zincir – 1/2*3/32″*124L,7-speed – Z7 GY/BR – Zuma |
| Pedal – 9/16″, with L/R sticker -FP-806B – Zuma |
| İç Lastik – 20″*4.0″,A/V,H=48MM – Zuma |
| Dış Lastik – 20″*4.0″,with CST logo – C1752 – Zuma |
| Jant Kolonu – 20*70mm – A/V, Nylon – Zuma |
| Ön Fren – disc brake,M6*16L,with 160mm disc plate |
| Arka Fren – disc brake,M6*18L,with 160mm disc plate |
| Fren Kablosu – 7*6,F:1100*1450,R:1820*230 – Zuma |
| Vites Kolu – Sağ – 7-Vites,2050MM – ASLRV2007RA – Zuma |
| Arka Attırıcı – 6/7 Vites – ARDTY21BGSDL – Zuma |
| Vites Kablosu – 2150mm – Zuma |
| Vites Teli – 2600mm – Zuma |
| Sele – w/Clamp – VD608D – Siyah – Zuma |
| Sele Borusu – ?27.2mm*400mm, without clamp – MD-SPS1- Zuma |
| Sele Kelepçesi – ?31.8mm,with Q/R – JH-01 – Zuma |
| Ön – Arka Çamurluk – 20″,108mm*25mm,radius=310mm L:550mm – L:880mm – Zuma |
| Ön Braket – ?4.3MM,?6.5MM,217MM – Zuma, Çamurluk ve Klips – Steel, UCP – Zuma |
| Arka Braket – ?4.3MM,?6.5MM,294MM – Zuma,Çamurluk Klips – Steel, UCP – Zuma |
| Parkayağı – 245mm,M6*15mm,40mm – SD-10 – Zuma |
| Ön Jant Reflektörü – yellow,140 pitch-row – Zuma |
| Arka Jant Reflektörü – yellow,140 pitch-row – Zuma |
| Zil – ?22.2 clamp – 11A-05 – Zuma |
| Ön Far – 36V,black,7015 plug – D-022 – Zuma |
| Arka Far – pitch-row,50-80mm,36V,red/black – WD-09 – Zuma |
| Klip – 25*15mm rubber cover – Zuma |
| Arka Taşıyıcı Kemeri – L=450MM – Zuma |
| Plastik kelepçe – 4x150mm – COASTER/ARMOUR/DISCOVERY |
| Batarya – 36V*10.4AH – SF-2 – Zuma |
| Batarya Aksesuarı – Kablosu 250mm |
| Batarya Aksesuarı – SF-2 – Zuma / Batarya Kablosu – 250mm – Zuma |
| Controller – 20″, 36V*350W, speed limit 25km/h – Zuma |

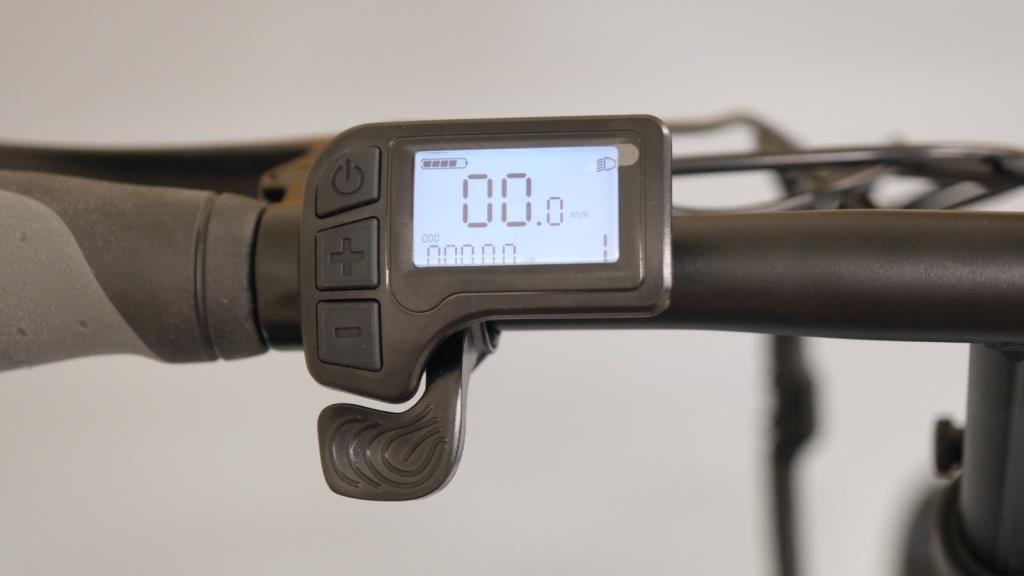

| Ekran – 36V,0-5 level,with throttle, display and throttle separately – Zuma |
| Hız Sensörü – left,double hall, 300MM – Zuma |
| Şarj – 36V,2A,DC2.1 – Zuma |
| Elektrik Kablosu – 1T3 -Zuma |
| Kablo Sargısı – 8mm,0.5m,black – Zuma |
| Sol Fren Kolu – Elektrik kesme swich – Zuma |
| Sağ Fren Kolu – Elektrik kesme swich – Zuma |
| Bisiklet Kolisi – 1730x260x940 E-bike (Loop) ZUMA |
| Şerit – Beyaz 12*0.60mm 3000mt |
| Strafor 48/10 – 28/10 |
| Plastik Kelepçe – 4.8x370mm Kadro İçin |
| Arka Attırıcı Koruma Plastiği – KRON |
| KOLİ KAPAMA TELİ – 38x35mm |
| Garanti Belgesi – Kron E-Bike |
| Elcik koruma kılıfı – Balonlu Şilte Torba 18x30cm |
| Ruble – Shimano AMFTZ5007428 – 7 SPEED – 14-28T |
